Single Point Watering Systems

With over a decade of success on locomotives traveling across the US and Canada, the Flow-Rite single-point watering systems have been proven highly effective at reducing battery maintenance time/cost and improving battery performance. Flow-Rite SPWS may be purchased through RBS for easy install by railroad maintenance crews. They can also be factory-installed when ordering new Stryten Energy locomotive starting batteries KDZ501-FR and KDZ651-FR.

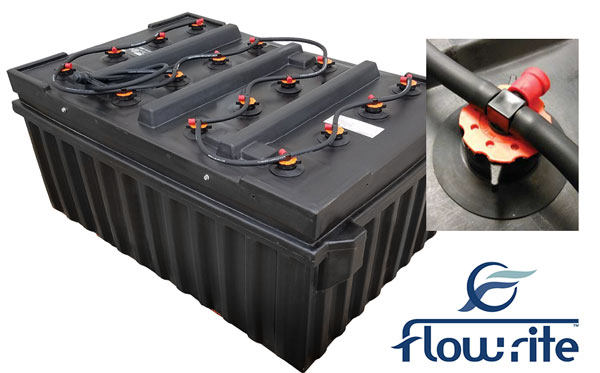

Locomotive Single Point Watering System

Frequent locomotive starts demand aggressive charging which results in increased water use within the batteries. Maintaining the proper level of water is essential to ensure cranking amps are available. The Flow-Rite single-point watering systems are designed specifically

Easier and Better Maintenance

  • Ensure that all cells, including those in the very back are watered
  • Maintainer can complete watering tasks in about one or two minutes
  • Will automatically ensure the correct amount of water is delivered to each cell, every time
  • Typical install requires only about 15 minutes
  • Standard hose and coupler connections available

Designed for Operational Safety

  • Designed to help eliminate dangerous acid spills
  • The ONLY locomotive single-point watering system that provides internal flame arrestors
  • Eliminates the need to lift or remove a battery from the compartment before watering
  • De-gas chamber allows normal release of gasses

Water Supplies


Regulated Hose Supply

  • Reduce facility water pressure to safe level
  • Flow-Indicator and Quick Coupler included
  • 3/4″ hose connection

Portable Watering Cart

  • 22 gallon capacity
  • AC or DC powered
  • Auto shut-off when filling is complete
Battery Water Deionizer

Deionized Water Supply

  • Remove dissolved solids from facility water
  • Red/green water quality light for cartridge replacement
  • 20ft supply hose
Portable Watering Supply

Portable Water Supply

  • Hand carried or wall mounted
  • 110-115 VAC or DC powered
  • Includes input & output hose with pressure regulator

Mini Pump

  • DC powered
  • Used with a portable water tank
  • Quick-coupler with flow indicator included
gravity tank

Gravity Tank

  • May be placed on a shelf or with optional mounting bracket
  • 5-gallon capacity tank
  • Quick-coupler with flow indicator included

Parts and Accessories

deionizer cartridge

Deionizer Cartridge

  • Replacement cartridge
  • Compatible with Flow-Rite deionizer



Hose End Assembly

  • Water pressure regulator
  • Quick-coupler and flow indicator included
hose end coupler

Flow Indicator Replacement

  • Includes coupler and flow indicator
  • Replacement part for the Regulator Hose Supply
